Table of Contents
1. What Is a Throttle Body?
The throttle body is a critical component in modern fuel-injected engines that regulates airflow into the combustion chamber. Located between the air filter and intake manifold, it consists of:
-
Throttle plate (butterfly valve)
-
Throttle position sensor (TPS)
-
Idle air control valve (IACV)
-
Electronic throttle control (ETC) in newer vehicles
Source: SAE International Journal of Engines
2. How a Throttle Body Works
When you press the accelerator pedal:
-
Electronic signal is sent to the throttle body (via drive-by-wire systems in modern cars)
-
Throttle plate rotates (typically 0-90 degrees)
-
Airflow increases proportionally to pedal input
-
ECU adjusts fuel injection based on MAF/MAP sensor data
Key Specifications:
| Parameter | Typical Value |
|---|---|
| Diameter | 50-90mm (varies by engine size) |
| Response Time | <100ms in drive-by-wire systems |
| Operating Voltage | 12V (5V for TPS sensors) |
4. Symptoms of a Failing Throttle Body
H3: Common Warning Signs
-
Rough idle (engine shakes at stoplights)
-
Hesitation/stumbling during acceleration
-
Check Engine Light (codes P0121, P0222, or P2119)
-
High or fluctuating idle speed
H3: Diagnostic Steps
-
Scan for trouble codes using an OBD2 scanner
-

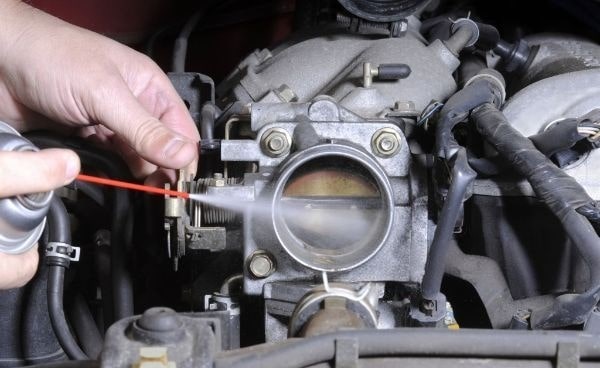

Inspect for carbon buildup on throttle plate
-
Test TPS voltage (should be 0.5-4.5V smoothly varying)
Related: SparesFlex Engine Sensors Guide
6. Throttle Body Replacement Guide
Tools Needed:
-
Torx/Allen bit set
-
Throttle body gasket
-
Electronic cleaner (for connectors)
Step-by-Step:
-
Disconnect negative battery terminal
-
Remove air intake duct
-

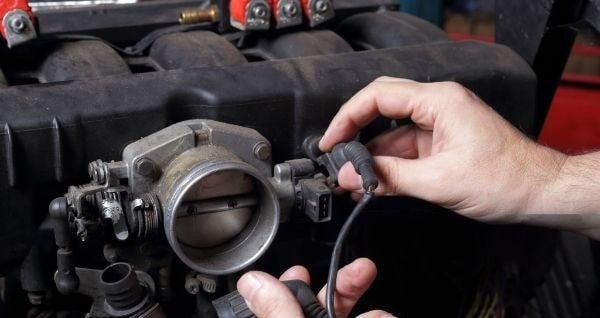

Unplug electrical connectors (TPS, IACV)
-

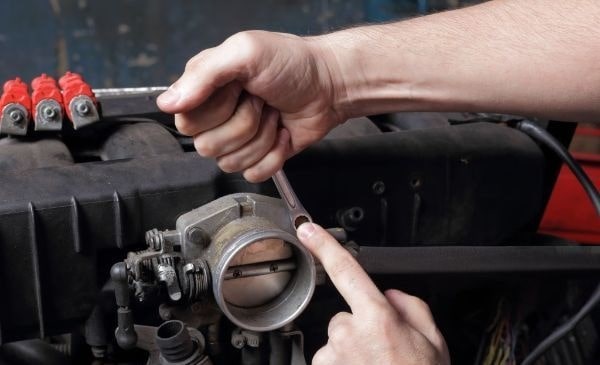

Unscrew mounting bolts (usually 4-6)
-
Install new throttle body with fresh gasket
-
Perform throttle relearn procedure (varies by vehicle)
⚠️ Warning: Never force the throttle plate open - may damage TPS!
