Hotchkis 74-81 F-Body Subframe Connector Kit - 4013

(No reviews yet) Write a Review
$611.99
Part Number
HOT4013
UPC:
00810361037559
Availability:
Regularly stocked product
5 customers are viewing this product

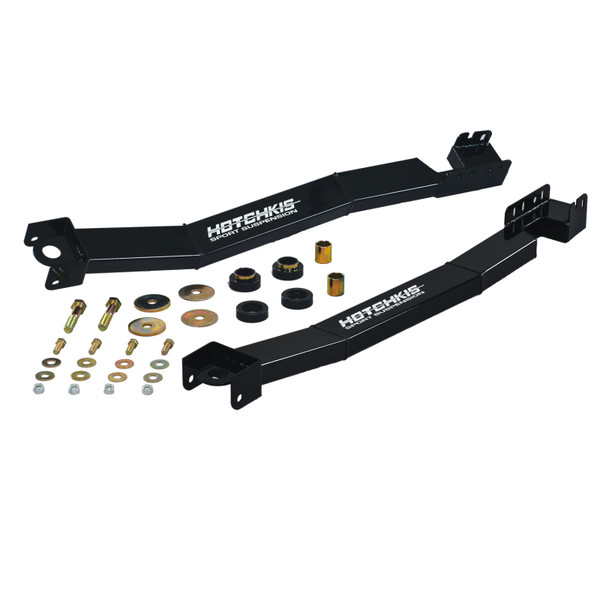

Hotchkis Sport Suspension 4013 1974-1981 Camaro/Firebird Sub Frame Connectors. The Hotchkis Performance sub-frame connectors for 74-81 F-Body cars are designed to add rigidity to the chassis to improve vehicle performance by reducing chassis flex. Fabricated from 1.5 in. x 3 in. .120 wall rectangular steel these TIG-welded connectors are powder coated gloss black. Installation of these connectors does not require modifications or cutting of the floor boards. The rear mount is a weld in while the front mount is a bolt in with the option to weld. This is a must have finishing touch for any F-Body restoration. Features: Powder Coated Gloss Black Finish TIG-welded Fabricated from 1.5 in. x 3 in. .120 wall rectangular steel. Rigidly connects the front subframe to rear chassis frame rail which dramatically reduces chassis flex during hard cornering and acceleration. Does not require cutting or modifying the floor. Front is optional weld or bolt-on. Allows for front subframe removal if needed. Tucked-in design gives excellent ground clearance. Benefits: Improves vehicle handling. Improves vehicle traction. Reduced chassis flex.
Installation Instructions
Warranty
Certificate of Origin


This Part Fits:

YearMakeModelSubmodel
1974-1980ChevroletCamaroBase
1979-1981ChevroletCamaroBerlinetta
1974-1978ChevroletCamaroLT
1976-1978ChevroletCamaroLT Rally Sport
1976-1980ChevroletCamaroRally Sport
1975ChevroletCamaroRS
1981ChevroletCamaroSport
1974,1977-1981ChevroletCamaroZ28
1973DodgeDartBase
1974-1981PontiacFirebirdBase
1974-1981PontiacFirebirdEsprit
1974-1981PontiacFirebirdFormula
1974-1981PontiacFirebirdTrans Am
Case Lot Quantity:
1
Category:
Suspension>Chassis Bracing
MPN:
4013
Product ID:
14359
Proposition 65:
N
Special Order:
Y
