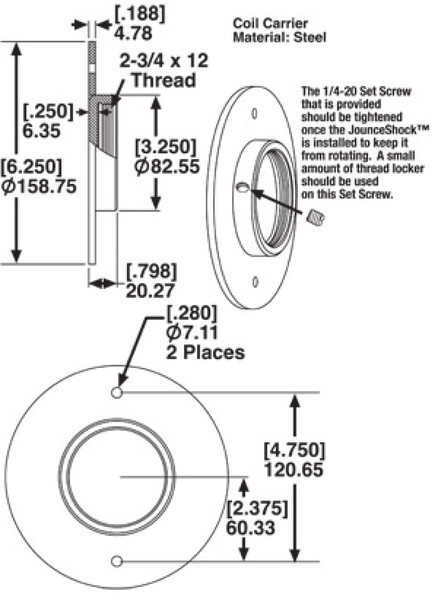

The Coil Carrier / Bolt Up Mount can be sandwiched in your spring seat or bolted to the bottom of a frame.Plate can be trimmed to square as a bolt up or welded frame mount. California Residents WARNING Installation Instructions
This universal mount provides a versatile weld or bolt on option to mount your JounceShock in a fixed position (trim to fit) California Residents WARNINGInstallation Instructions
The Domed foot screws directly into the shaft of the JounceShock.This is the most traditional of bump shock ends and is most often used in an application with some scrub on a Target Plate.It can also...
The 15deg Flex Mount assembly can be welded to your mounting point,giving you 7.5deg of articulation in any direction during compression and centering the JounceShock during rebound.The 15deg Flex...
The Fixed Mount assembly can be welded to your mounting point.It provides a simple attachment point for your JounceShock.The Fixed Mount will most often be used with the Domed Foot on the shaft end...
The threaded Cupped Foot with the Domed Target,which can be bolted or welded to your JounceShock for up to 30deg of motion as your suspension travels. California Residents WARNINGInstallation...
